當前位置：染色機用均流型導布管發明介紹

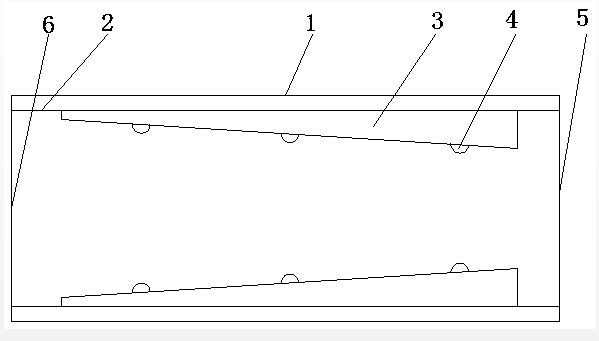

惠澤染色機公司發明公開了一種實用新型染色機用均流型導布管，包括：管體，所述管體內設有內腔，所述內腔上設置有多個均流斜塊，所述均流斜塊的橫截面高度逐漸遞增，所述均流斜塊位于管體出口端的橫截面高度大于位于管體進口端的橫截面高度，所述均流斜塊的上還設置有多個穩流凸塊。通過上述方式，本實用新型染色機用均流型導布管，能夠保證管內布匹運行平順，結構簡單，使用穩定，安全可靠。
This utility model discloses a dyeing machine and has led the stringing with the type that flow equalizes, includes: the body, is equipped with the inner chamber in the said body, is provided with a plurality of sloping blocks that flow equalize on the said inner chamber, and the cross section height of the said sloping block that flow equalizes scales up gradually, and the cross section height that the said sloping block that flow equalizes is located the body exit end is greater than the cross section height that is located the body entrance point, also is provided with a plurality of stationary flow lugs on the said sloping block that flow equalizes.
Through above-mentioned mode, the stringing is led with the type that flow equalizes to this utility model dyeing machine, can guarantee that the operation of intraductal cloth is smooth-going, and the structure is simple, uses stably, safe and reliable.
